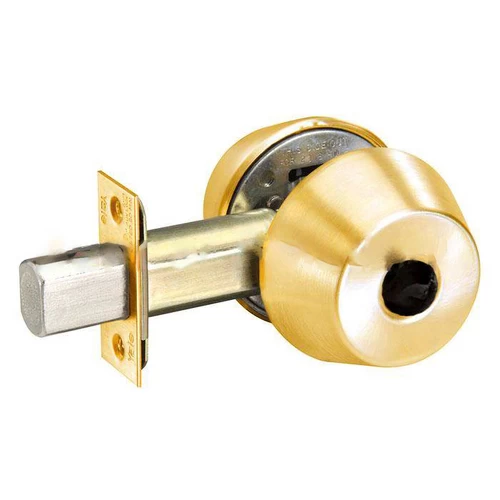

Yale Commercial D221-605-LC D200 Series Deadbolt Grade 2, Bright Polished Brass

Cylinder by Cylinder, 605 Bright Brass, 2-3/8″, Less Cylinder
D200 SeriesCylindrical Deadbolts

Yale® D Series deadbolts are the ideal choice for a wide variety of commercial applications where consistent quality, ease of use and installation are required.

Specifications: ANSI/BHMA:

• D200: Certified ANSI/BHMA A156.36 Grade 2.

Deadbolt:

• 1″ (25mm) throw, solid steel deadbolt with hardened, free spinning, steel pin insert.

Fronts:

• 2-1/4″ x 1″ (57mm x 25mm) front and 1-1/8″ (29mm) latch front filler supplied standard with each D series deadbolt.

Strikes:

• 2-3/4″ x 1-1/8″ (70mm x 29mm) metal and wood door strikes with strike reinforcement supplied standard.

Handing:

• Functions are non-handed and easily field reversible.

Backset:

• 2-3/4″ (70mm) or 2-3/8″ (60mm) backset.

Door Thickness:

• Standard for 1-3/8″ (35mm) to 1-3/4″ (44mm) thick doors.

Installation:

• Can be installed on doors prepared to ANSI/BHMA A156.115 specifications using a simple bored-hole installation for square or beveled doors, opening in or out.

Finishes:

• 605, 606, 612, 613, 613E, 619, 625, 626, BSP, WSP. Cylinders provided in 626 or 606 finish only.

Warranty:

• 1 year mechanical

Fire Listings:

• D series deadbolts, when used in conjunction with the primary latching device, are UL – cUL listed for use with Classified steel covered composite or hollow metal doors rated up to and including 3 hours; wood and plastic covered composite doors rated up to and including 1-1/2 hours; and wood core doors rated for 20 minutes.

• Note: Any retrofit or other field modification to a fire rated opening can potentially impact the fire rating of the opening, and Yale Locks & Hardware makes no representations or warranties concerning what such impact may be in any specific situation. When retrofitting any portion of an existing fire rated opening, or specifying and installing a new fire-rated opening, please consult with a code specialist or local code official (Authority Having Jurisdiction) to ensure compliance with all applicable codes and ratings.
