Yale Commercial B-AU5307LN 626 5300LN Series Standard Duty Lever Lock, Satin Chrome

626 Satin Chrome, AU Levers, Entry, Best Core Prep

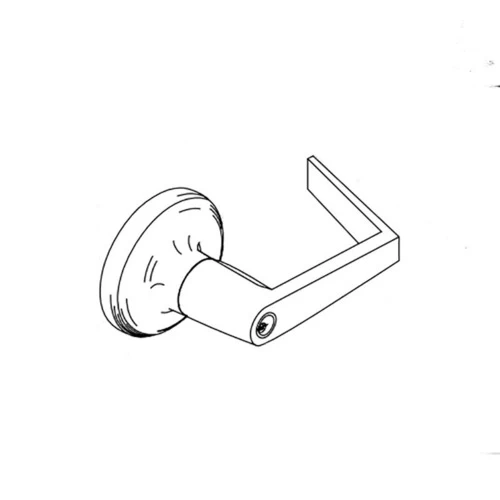

5300LN SeriesCertified Cylindrical Lever Locks

The 5300LN Series Cylindrical Lever Lock is a reliable Grade 2 cylindrical lockset that boasts innovative design and construction features. The Free Wheeling lever mechanism helps to resist against vandalism, while the adjustable door thickness feature makes for easy installation. Protected by a five year warranty and a lifetime warranty against lever sag and spring breakage, you can rely on the 5300LN to withstand the rigors of everyday use.

With innovative features in an affordable lock, Yale Works for You℠.

MicroShield®
As part of their promise to provide innovative solutions to their customers, certain ASSA ABLOY Group brands offer the MicroShield® technology, a silverbased antimicrobial coating designed to inhibit the growth of bacteria.
MicroShield® is a registered trademark of Yale Security Inc., an ASSA ABLOY Group company.

Benefits: Secure:

• Designed to withstand everyday use and resist damage and vandalism

Versatile:

• Variety of functions, trims, finishes and keying options for ultimate installation flexibility

Protected:

• Five year mechanical warranty plus a lifetime warranty against lever sag and lever spring breakage

Strong & Reliable:

• ANSI/BHMA Grade 2 certified for long life and durability

Features:

• Free Wheeling lever mechanism prevents vandalism and reduces lock maintenance

• Adjustable door thickness mechanism

• Heavy duty torsion spring prevents lever sag throughout product’s lifetime

• Thrubolts solidly through the door, providing greater strength and stability

• Available with a wide range of cylinder options

• Available in 23 functions (including electrified), 12 standard finishes and 3 lever designs

• ADA compliant for ease of accessibility

Specifications: Backset:

• 2-3/4″ standard

Door Thickness:

• Adjustable for doors 1-3/4″ to 2″

Handing:

• Non-handed, field reversible

Latchbolt:

• 2-3/4″ backset, 1/2″ throw

Strike:

• ANSI strike 4-7/8″ x 1-1/4″ x 1-1/4″ lip to center

ANSI/BHMA:

• Certified Grade 2, ANSI/BHMA A156.2

UL/cUL:

• Listed for 3 hour fire doors

Windstorm:

• Certified, check local codes

Warranty:

• 5 years

Finishes: 605:

• Bright Brass, Clear Coated

606:

• Satin Brass, Clear Coated

609:

• Satin Brass, Blackened, Satin Relieved, Clear Coated

612:

• Satin Bronze, Clear Coated

613E:

• Dark Oxidized Satin Bronze – equivalent

616:

• Satin Bronze, Blackened, and Satin Relieved, Clear Coated

620:

• Satin Nickel Plated, Blackened, Satin Relieved, Clear Coated

625:

• Bright Chrome Plated

626:

• Satin Chrome Plated*

693:

• Black Painted

BSP:

• Black Suede Powder Coat

WSP:

• White Suede Powder Coat

• *Finish available with MicroShield® antimicrobial coating. Add YMS suffix to order MicroShield antimicrobial coating.

• MicroShield coating may vary finish color from architectural standards. MicroShield is not intended as a substitute for traditional infection control programs such as hand hygiene or use of disinfectants. Coated products must still be cleaned to ensure the surfaces will be free of destructive microbes. Yale makes no representations or warranties, express or implied, as to the efficacy of MicroShield.
