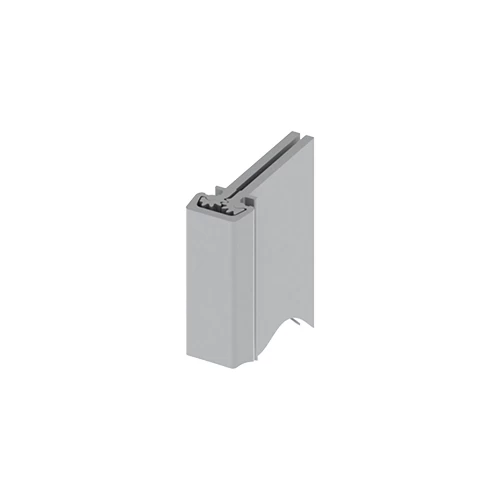

Hager 085935 780HD112 85″ CLR .NN.NN REV S

780HD112 85″ CLR .NN.NN REV S
SPECS :

Applications:

• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (specify “LL”)
• Frame and door leaf alignment ribs for proper hinge and door location

Clearance:

• 5/16″ (8 mm) hinge side
• Plus standard lockside clearance

Door Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Electricmodifications:

• Power Transfer Preparation (EPT 2) or (EPT 10),
• Exposed Electric Contacts (E),
• Exposed Electric Switches (E1S),
• Electric Through-Wire (ETW),
• Electric Monitoring (EMN),
• Electric Through-Wire and Monitoring (ETM),
• Removable Electric Through-Wire (RETW)

Fasteners:

• #12-24 X 11/16″ Flat Head Self-Drill fasteners
• 1/2 Dril-Kwik® fasteners, 1/2 wood fasteners

Features:

• Standard duty for medium frequency doors. Heavy duty for high frequency doors or heavy, medium frequency doors.
• Lead lined model for hospital x-ray room doors with double row of fasteners to straddle lead (Specify “LL”)
• Frame and door leaf alignment ribs for proper hinge and door location

Firerating: Up to 3-hour metal and 90 minute wood composite (with studs)

Frame Reinforcement: None required to 200 lbs. Heavier weight use 16-gauge channel.

Length Options: Standard and Custom

Notes: EPD: Roton Continuous Hinges Environmental Product Declaration, Must Order Case Quantity

Options:

• Hospital Tip
• TIPIT® (see Roton accessories)

Product Description:

• Concealed Leaf
• Case Pack w/ Drill Quick fasteners
