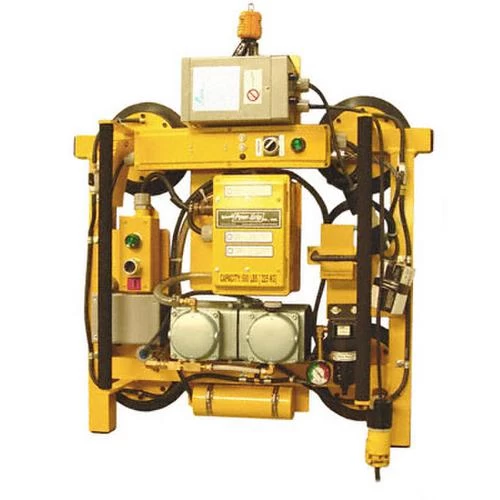

CRL VLPL49A1RS Wood’s Powr-Grip 500 Pound Manual Rotator

This Wood’s 500 Pound Powr-Grip® Manual Rotator is a great choice when you need maximum ease in the manipulation of heavy loads. It combines manual 360 degree rotation, and fast attach/release times, making them ideal on high-output production lines.
STANDARD PAD SPREAD:
CAT. NO. MR49AC: 24″ x 30″ (610 x 762 mm)
CAT. NO. MR411LAC: 26″ x 32″ (661 x 813 mm)
CAT. NO. MR4HV11AC: 25″ x 31″ (636 x 788 mm)
NUMBER/SIZE OF PADS:
CAT. NO. MR49AC: 4/9″ (229 mm) Diameter
CAT. NO. MR411LAC: 4/11″ (280 mm) Diameter Lipped
CAT. NO. MR4HV11AC: 4/10″ (254 mm) Diameter Lipped
LIFTING CAPACITY:
CAT. NO. MR49AC: 500 lbs. (227 kg)
CAT. NO. MR411LAC: 700 lbs. (318 kg)
CAT. NO. MR4HV11AC: 600 lbs. (272 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
AVERAGE UNIT WEIGHT: 61 lbs. (28 kg)
STANDARD OPERATING POWER: 120V AC, 60 Hz, 5 AMP (100V AC, 60 Hz, 3 AMP and 240V AC, 60 Hz, 2 AMP also available)
APPLY/RELEASE TIMES:
CAT. NO. MR49AC: 1 sec./1 sec. (approximately)
CAT. NO. MR411LAC: 2 sec./2 sec. (approximately)
LOAD MOVEMENT: Manual rotation, 360 degrees edgewise with automatic locking at the quarter points.
STANDARD FEATURES:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
AVAILABLE OPTIONS:
• Air (Venturi) Power System
CAT. NO. MR49A1R
CAT. NO. MR411LA1R
CAT. NO. MR4HV11A1R
• Individual Pad Shutoffs
CAT. NO. CM1C0WB
• Green Lift Light
CAT. NO. E02GSL
• Vacuum Loss Warning Buzzer
CAT. NO. E03VLW
• Voltage Adaptation
CAT. NO. E06VA
• Closed Cell Foam Pad Rings
CAT. NO. FRHV11
(Available on CAT. NO. MR4HV11AC only)
• Linear Pad Frame
CAT. NO. CF8LF0
For special sizes and capacities please contact our Glass and Glazing Technical Sales.
