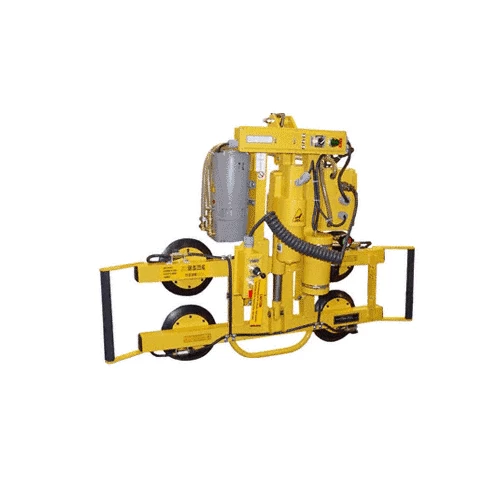

CRL PT49ACS Wood’s Powr-Grip Power Tilter 500 Series

CRL Wood’s Powr-Grip® Power Tilter 500 Series has fast apply and release times and effortless power tilt. This vacuum lifter is ideal for transferring glass or other non-porous materials between vertical storage and horizontal production machinery, as well as many other applications. For special sizes and capacities, please contact our Glass and Glazing Technical Sales Department.
Standard Vacuum Pad Spread: 20-1/2″ x 37-1/2″ (521 x 953 mm)
Number/Size of Vacuum Pads: 4/9″ (229 mm) Diameter Vacuum Pads
Lifting Capacity: 500 Lbs. (227 kg) on smooth non-porous surfaces
Weight of Vacuum Lifter: 168 Lbs. (76 kg)
Standard Operating Power: 120V AC, 60 Hz, 10 Amp
Apply: 1 sec. Release: 1 sec. (approx.)
Load Movement: Power Tilt, 90 degrees between upright and flat
Time for 90 Degree Tilt: 6.5 seconds (approx.)
Tilt Duty: 81 Tilts Per Hour
Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Available Options:

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

Individual Vacuum pad Shutoffs CAT. NO. CM1C0WB

Voltage Adaptation CAT. NO. E06VA
