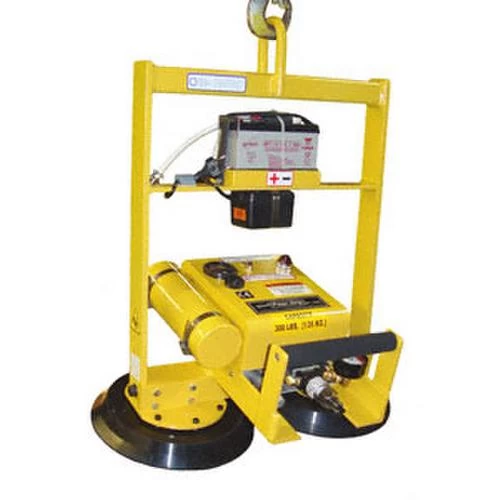

CRL MT2HV11DCS Wood’s Powr-Grip Manual Tilter 300

The CRL Wood’s Powr-Grip® Manual Tilter 300 is the most economical method of tilting Glass. The frame automatically locks into the upright position for transporting glass. Conveniently placed handle helps keep the operator in control of the load at all times. Only five seconds are required to apply full vacuum to the glass and 5 seconds to release.
Standard Pad Spread: 11″ x 23″ (280 x 584 mm)
Number/Size of Pads: 2/10″ (254 mm) Diameter Lipped
Lifting Capacity: 300 Lbs. (135 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Unit Weight: 51 Lbs. (24 kg)
Standard Operating Power: 12V DC, 10 AMP (Other voltages available)
Apply/Release: 5/5 sec. (approx)
Load Movement: Manual Tilt, 90 Degrees Between Upright and Flat
Standard Features:
Low Vacuum Warning Light
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
On-Board Battery and Charger
Battery Energy Gauge
Available Options:

Dual Vacuum System CAT. NO. E010DVS

Flat Lift Model CAT. NO. FL2HV11DCS

Closed Cell Foam Pad Rings CAT. NO. FRHV11

Removable Control Pendant CAT. NO. E09RP
