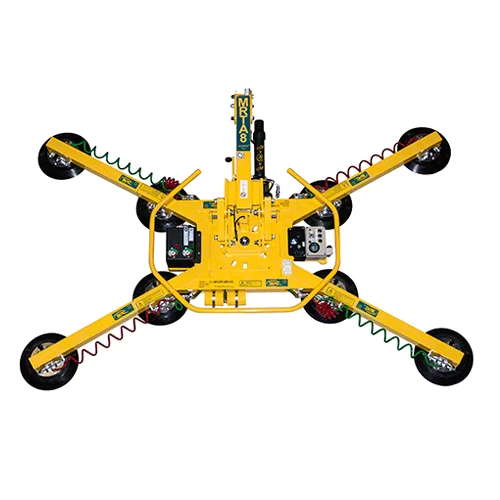

CRL MRTA811LDC3 Wood’s Powr-Grip Quadra-Tilt Rotator With DC3 Dual Vacuum System

TheCRL Wood’s Powr-Grip® High-Flow Quadra-Tilt Lifters features an innovative Four-Bar Tilt Mechanism that significantly reduces the effort of tilting heavy loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the Lifter automatically locks at every 1/4 revolution, eliminating the tendency for a load to “kick back”. This Lifter also employs Wood’s Intelli-Grip® technology to anticipate system threats by alerting the operator beforehand with visible and audible warnings, reducing the risk of damage or injury. Intelli-Grips® smart power management enables lifter to work longer on a single charge and, while continuously monitoring the battery, prevents the lifter from attaching to loads if energy is hazardously low.
NOTE: Intelli-Grip® automatic self-testing ensures lifter is ready for use with every lift. Color display provides critically relevant information at a glance. Anticipates threats and alerts operator beforehand with clearly visible and audible warnings. Smart power management enables lifter to work longer on a single charge. Continuously monitors battery and prevents lifter from attaching to loads if energy is hazardously low. Multiple alarm levels plainly identify the severity of hazards.
These units also feature 360 degree manual rotation, removable pads and extension arms that accommodate a variety of load sizes and shapes.
Standard Pad Spread:
Minimum Width – 12-1/2″ (32 cm)
Maximum Width – 58-3/4″ (149 cm)
Minimum Length – 47″ (119 cm)
Maximum Length – 104-3/4″ (266 cm)
Number/Size of Vacuum Pads: 8 Each 11″ Diameter, Lipped Pads
Maximum Load Capacity:
1400 lb. (635 kg) On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.
Weight of Lifter: 200 lb. (91 kg)
Standard Operating Power: 12 Volts DC, 4.5 amps
Load Movement: Manual rotation, 360 degree edgewise, with automatic locking at each 1/4 revolution. Assisted manual tilt, 90 degrees between upright and flat.
Standard Features:
Dual Vacuum System
On-Board Battery and Charger
Battery Energy Gauge
Low Vacuum Warning Buzzer
Power Loss Warning Buzzer
Green Lift Light
Vacuum Gauges
Vacuum Line Filters
Vacuum Reserve Tanks
Spring-Mounted Vacuum Pads
Removable Pad Mounts
Pad Extension Arms
Tilt Locks
Blow-Off for Quick release
Available Options:
Remote Control System
Extensions for Movable Pad Mounts
Pad Frame T-arm Assemblies
Alternative Vacuum Pads (Specifications not as listed above. Please contact us for more information)
9″ Diameter Pad (VPFS9)
10″ Diameter, Concave Pad (G0750)
10″ Diameter with Replaceable Sealing Ring (VPFS10T)
Alternative pad compounds, including those for low-marking, temperature resistant and coated surface applications.
Product Warning:
CRL offers large Power Lifting Frames on a weekly rental basis.
Customers are responsible for all common carrier freight charges and may need to provide a security deposit.
Usage time is based on a one week minimum and begins the day the frame arrives and ends once it’s in transit back to the the originating point. Billing is for full weeks only.
For details, availability and actual pricing please contact the Door and Window Department.
