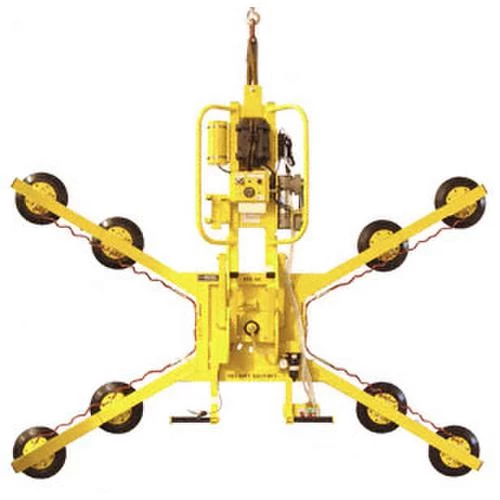

CRL MRTA811LAC Wood’s AC 1400 Series High Flow Quadra Tilt Rotator

The Wood’s Powr-Grip® High-Flow Quadra-Tilt Lifters feature an innovative Four-Bar Tilt Mechanism that significantly reduces the effort of tilting heavy loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the Lifter maintains the load position automatically without using latches, eliminating the tendency for a load to “kick back” at the operator’s knees.
These units also feature 360 degree manual rotation, removable pads and extension arms that accommodate a variety of load sizes and shapes.
Standard Pad Spread: CAT. NO. MRTA8HV11DC
48″ x 71-1/2″ (1.22 x 1.82 m basic configuration)
35-1/2″ x 49-3/4″ (902 mm x 1.26 m small configuration)
122″ x 12-3/4″ (3.10 m x 324 mm linear configuration)
68″ x 106-1/4″ (1.73 x 2.70 m extended configuration)
Standard Pad Spread: CAT. NOs. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC
Add 1″ (25 mm) to each dimension listed above.
Number/Size of Pads:
CAT. NO. MRTA8HV11DC: 8/10″ (254 mm) Diameter Lipped
CAT. NO. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC: 8/11″ (280 mm) Diameter Lipped
Lifting Capacity:
CAT. NO. MRTA8HV11DC: 1,200 Lbs. (545 kg)
CAT. NO. MRTA811LDC, AUMRTA811LDC, and EUMRTA811LDC: 1,400 Lbs. (635 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Capacity reduced in this configuration
Average Unit Weight: 302 Lbs. (137 kg)
Standard Operating Power: 12V DC, 26 AMP
Load Movement: Manual rotation, 360 degrees edgewise, with automatic locking at each 1/4 revolution. Assisted manual tilt, 90 degrees between upright and flat.
Standard Features:
Low Vacuum Warning Light
On-board Battery and Charger
Battery Energy Gauge
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-Mounted Pads
(Re)movable Pad Mounts
Extension Arms
Blow-off for Quick Release
Available Options:

Standard Flow DC Power System

Dual Vacuum System CAT. NO. E010DVS

AC and Air (Venturi) Power Systems

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

Long Extension Arms CAT. NO. CF5LEA0

Closed Cell Foam Pad Rings CAT. NO. FRHV11 (Available on CAT. NO. MRTA8HV11DC only)

Tilt Lock CAT. NO. LB8TL0
For special sizes and capacities, please contact our Glass and Glazing Technical Sales.
