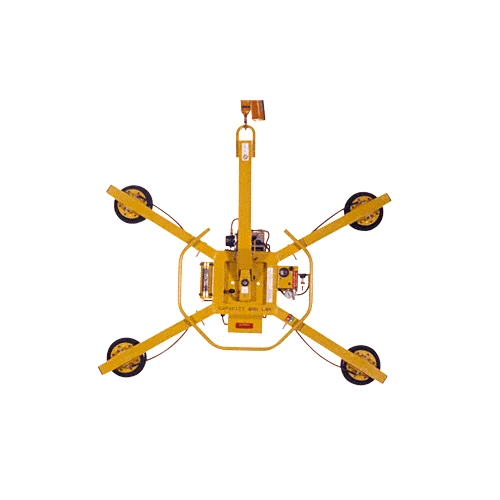

CRL MRT49DC Wood’s 500 Pound Load Capacity Manual Rotator/Tilter Lifter

The CRL Wood’s Powr-Grip® Manual Rotator/Tilter Vacuum Lifting Frames are the most versatile vacuum lifting system ever offered. Its flexible frame configurations, and adjustable pad locations allow you to design the frame to suit your requirements. Full 360 degree rotation with tilt to flat can be made from any position, due to a “perfect” pivot balance the 500 pound safe work load rating is maintained by an on-board gel cell battery powered vacuum system that supplies constant suction pressure to the vacuum pads. The electrical system is cord-free, and includes a system analyzer and charger unit. The smooth 360 degree rotational pivot has locking at each quarter point. Vacuum pressure at 8 seconds to attach, 6 seconds to release.
Standard Pad Spread: Cat. No. MRT49DC:
25-1/4″ x 30″ (641 x 762 mm) (basic configuration)
45-1/4″ x 64-3/4″ (1.15 x 1.65 m) (extended configuration)
75-1/4″ x 12-3/4″ (1.91 m x 324 mm) (linear configuration)
Standard Pad Spread: Cat. No. MRT411LDC:
add 2-3/4″ (70 mm) to each dimension listed above.
Number/Size of Pads:
CAT. NO. MRT49DC: 4/9″ (229 mm) diameter
CAT. NO. MRT411LDC: 4/11″ (280 mm) diameter lipped
Lifting Capacity:
CAT. NO. MRT49DC: 500 lbs. (225 kg)
CAT. NO. MRT411LDC: 700 lbs. (320 kg)
(On smooth, non-porous surfaces. Please contact
us for recommendations on other surfaces.)
Average Unit Weight: 122 lbs. (56 kg)
Standard Operating Power: 12V DC, 10 AMP
Load Movement: Manual rotation, 360 degree edgewise, with locking at each 1/4 point. Manual tilt, 90 degree between upright and flat, with automatic latching in upright position.
Standard Features:
Low Vacuum Warning Light
Onboard Battery and Charger
Battery Energy Gauge
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank
Spring-Mounted Pads
(Re)Movable Pad Mounts
Extension Arms
For additional information, please contact our Glass and Glazing Technical Sales.
