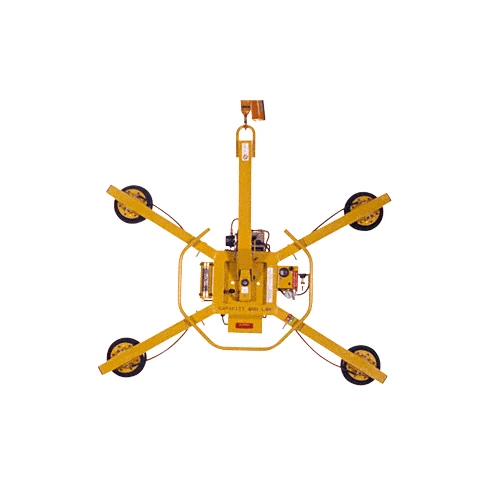

CRL MRT411LDC Wood’s 700 Pound Load Capacity Manual Rotator/Tilter Lifter

CRL Wood’s® Powr-Grip® 700 Pound (320 Kg) Load Capacity Powr-Grip® Manual Rotator/Tilter Lifter provides a reliable performance in heavy-duty installations. Flexible frame configurations and adjustable pad locations allow to design the frame as per the requirements.It has smooth 360 degrees tilt rotation and a high-flow vacuum system for fast attachments. Rotational Pivot are designed with a locking feature at each quarter point to reduce the risk of falling loads and accidents. The electrical system is cord-free, and includes a system analyzer and charger unit. This versatile vacuum lifting system takes 8 seconds to attach and 6 second to release the load. CRL Wood’s® Powr-Grip® 700 Pound (320 Kg) Load Capacity Powr-Grip® Manual Rotator/Tilter Lifter is mostly used in construction site or large shops. Standard Pad Spread: CAT. NO. MRT49DC: 25-1/4″ x 30″ (641 x 762 mm) (basic configuration) 45-1/4″ x 64-3/4″ (1149 x 1645 mm) (extended configuration) 75-1/4″ x 12-3/4″ (1911 x 324 mm) (linear configuration) Standard Pad Spread: CAT. NO. MRT411LDC: Add 2-3/4″ (70 mm) to Each Dimension Listed Above. Standard Pad Spread: CAT. NO. MRT4HV11DC: Add 1-3/4″ (45 mm)?to Each Dimension Listed Above. Number/Size of Pads: CAT. NO. MRT49DC: 4/9″ (229 mm) Diameter CAT. NO. MRT411LDC: 4/11″ (280 mm) Diameter Lipped CAT. NO. MRT4HV11DC: 4/10″ (254 mm) Diameter Lipped Lifting Capacity: CAT. NO. MRT49DC: 500 Lbs. (225 kg) CAT. NO. MRT411LDC: 700 Lbs. (320 kg) CAT. NO. MRT4HV11DC: 600 Lbs. (270 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces) Average Unit Weight: 122 Lbs. (56 kg) Standard Operating Power: 12V DC, 10 AMP Load Movement: Manual rotation, 360 degree edgewise, with locking at each 1/4 point. Manual tilt, 90 degree between upright and flat, with automatic latching in upright position. Standard Features: Low Vacuum Warning Light On-Board Battery and Charger Battery Energy Gauge Vacuum Gauge Vacuum Line Filter Vacuum Reserve Tank Spring-Mounted Pads (Re)Movable Pad Mounts Extension Arms Available Options: Long Extension Arms CAT. NO. CF5LEA0 Individual Pad Shutoffs CAT. NO. CM1C0WB Closed Cell Foam Pad Rings CAT. NO. FRHV11 (Available on CAT. No. MRT4HV11DC only.) Dual Vacuum System CAT. No. E010DVS (complies with CE Standard EN 13155 compliant) Adaptable Length Lift Bar CAT. NO. LB6AL0 Forklift Adapter CAT. NO. LB7FA0 Heavy-Duty Transport Case For additional information, please contact our Glass and Glazing Technical Sales. CRL now offers large Power Lifting Frames on a week to week rental basis. Customers are responsible for all common carrier freight charges and may require to provide a security deposit. Usage time is based on a one week minimum and begins on the day the frame arrives at the customer. Rental billing ends on the day the frame is shipped back to the originating point. Billing is for full weeks only, no partial weeks. For details, availability and actual pricing please contact CRL at (305) 851-2811 in the U.S., (305) 851-2811 from Canada, and ask for Customer Services or email us at [email protected]. DS 06/28/2016
