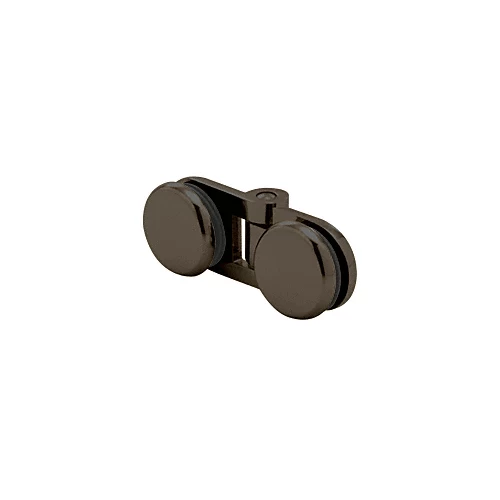

CRL HYDH1800RB Oil Rubbed Bronze Hydroslide Bi-Fold Glass-to-Glass Hinge

CRL Hydroslide Bi-Fold Hinges add a different element to the already popular Hydroslide System. Instead of a standard sliding door, you can now “Bi-Fold” two sliding panels of glass into the shower enclosure, creating a larger opening than the single sliding door will allow. Made of solid brass and available in four popular finishes, the Hydroslide Bi-Fold Hinges require holes in the glass.
NOTE: Upper Track, Hanger, and 90 Degree Wall-to-Upper Track Connectors necessary for installation are all sold separately.
SPECIFICATIONS:
Glass Thickness: 5/16″ to 3/8″ (8 to 10 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: Bi-Fold into Shower Enclosure
Closing Type: Free Swinging
Holes Required in Glass
Includes: Gaskets, Screws, and Glass Fabrication Dimensions
Maximum Capacities: Do not Exceed Either 48″ (1.22 m) or 100 Lbs. (45 kg) for Both Folding Doors Combined. Use Two Hinges Only on Each Folding Panel.
Product Warning:
CRL Shower Door Hinges are designed for residential or hotel shower use. If hinges are to be used for other than their intended purpose, approval must be obtained from the CRL Shower Door Technical Sales Department.
Use only the template included with this hinge. Cut-out dimensions for CRL hinges may not match those of other brands.
