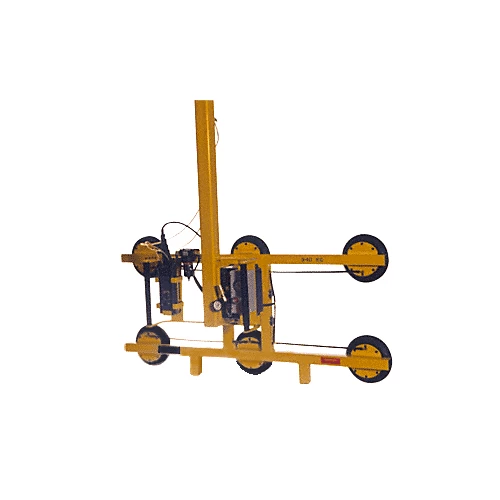

CRL CFVL69ACS Wood’s Powr-Grip AC Powered C-Frame Vertical Lifter 6-Cup Vacuum Lifter 750 Series

This CRL Wood’s Powr-Grip® C-Frame Vertical Lifter 500 Series has a unique shape that enables the operator to easily remove glass from shipping crates with the crate’s face removed. Its rugged construction is designed for long service life on high volume production lines.
Standard Pad Spread:
29-1/4″ x 39-1/4″ (743 x 997 mm)
Number/Size of Pads:
CAT. NO. CFVL49ACS 4/9″ (229 mm) Diameter
CAT. NO. CFVL69ACS 6/9″ (229 mm) Diameter
Lifting Capacity:
CAT. NO. CFVL49ACS: 500 Lbs. (227 kg)
CAT. NO. CFVL69ACS: 750 Lbs. (340 kg)
Standard Operating Power:
120V AC, 50/60 Hz, 5 AMP (other voltages available)
Apply/Release:
CAT. NO. CFVL49ACS: 1/1 sec. (approx)
CAT. NO. CFVL69ACS: 2/2 sec. (approx)
Load Movement: Upright to Upright
Standard Throat Depth: 14-1/2″ (368 mm)
Standard Features:
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Green Lift Light
Spring-Mounted Pads
Industrial Grade Switches
Twist-lock Electrical Plug
Blow-off for Quick Release
Alternative Power Systems
DC Power System
(CAT. NOS. CFVL49DCS or CFVL69DCS)
Air (Venturi) Power System
(CAT. NOS. CFVL49A1RS or CFVL69A1RS)
Available Options

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

12V/DC Vacuum Back-up System
CAT. NO. 01DCB

Individual Pad Shutoffs
CAT. NO. CM1C0WB
